Antuo Machining Center

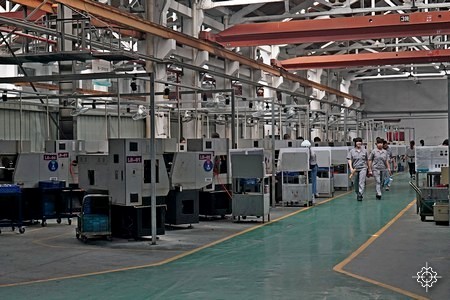

Precision CNC Turning Workshop

•

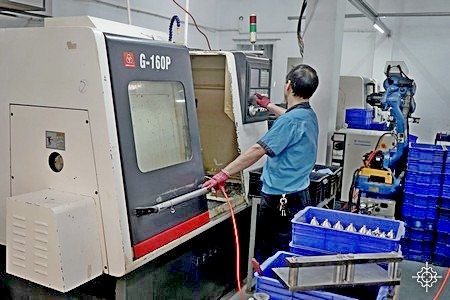

  Group of G-160P 2 Axis CNC lathes performs mass production of turning parts with high precision.
•
  Some of the CNC lathes are equip with robots to automate parts loading and unloading.

•
  G-160P 2 Axis CNC Lathe Specifications
  Workpiece Max Diameter: 160mm; Max Length:240mm
  Reposition Accuracy: X 0.007mm; Y 0.008mm
•

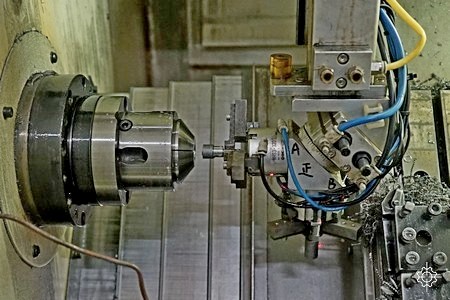

  G-160P's row turret tool set allow fast and accurate tool change; Automatic filings conveyor and collector make the cleaning easy.

Traditional Automatic Lathe Workshop

•
  Group of regular automatic lathes perform mass production of turning parts cost-effectively.
•
  An automatic lathe performs a turning job.

•
  Well organized machine shop equipped with regular automatic lathes.
•

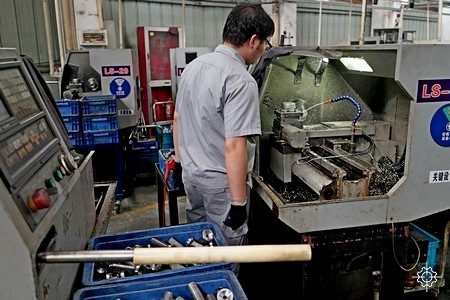

  Experience machinist operates two automatic lathe in the same time.

•
  Parts finished with lathe turning process, to be transferred to the next process.
•

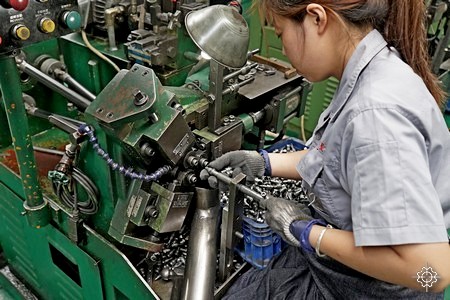

  A worker performs manual screw tapping process

•

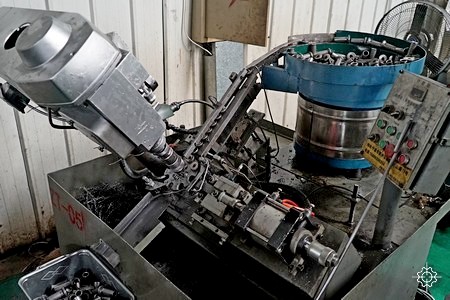

  Automatic screw tapping machine with automatic feeder
•

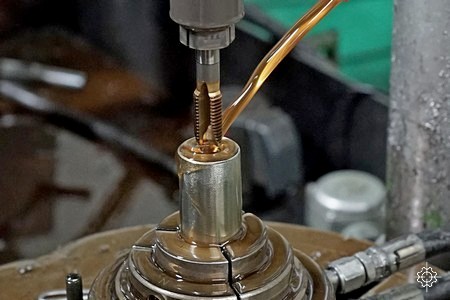

  Screw tapping workpiece on a pneumatic collet

•

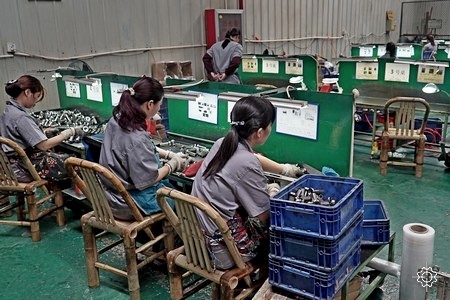

  Finish parts inspection station; parts are counted using counting scales
•

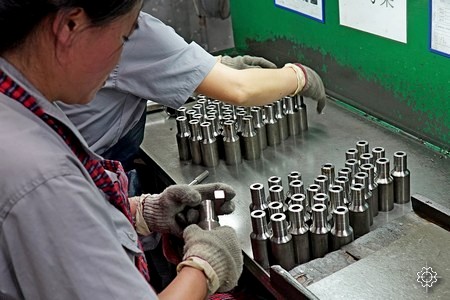

  A worker perform visual inspection and go/no-go gauge exam.

Screw Part Mass Production Workshop

•

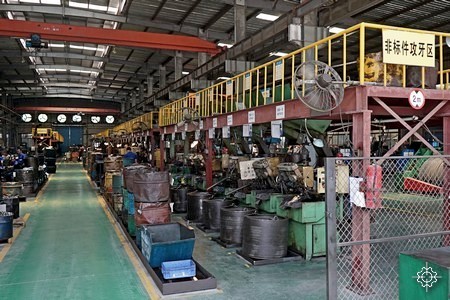

  Group of automatic screw tapping machine perform mass production.
•

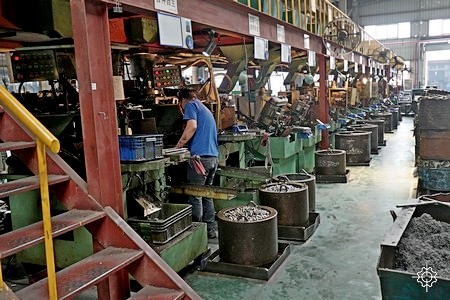

  One worker operates 12 automatic screw tapping machines.

Measurement and Inspection Lab

The lab is equipped with 1) dimensional measurement equipment, 2) defect inspection equipment, and 3) mechanical performance measurement machine.

•
  Concrete anchor holding force test machine
•

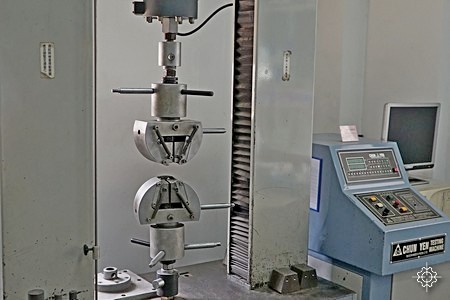

  Tensile strength test machine

•

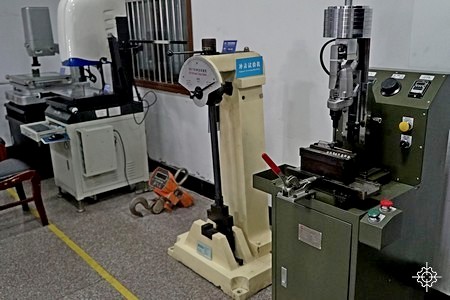

  Pendulum impact test machine.
•
  Microscope hardness tester

•

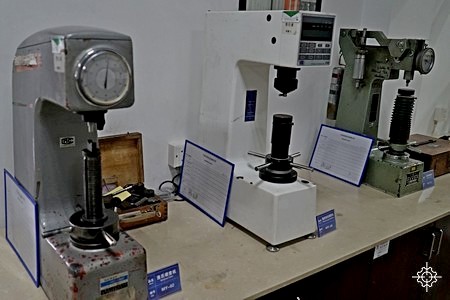

  Rockwell hardness testers
•

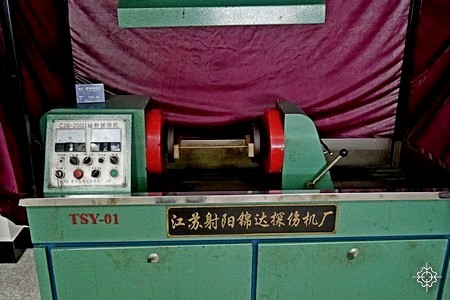

  Magnetic particle inspection machine (MPI) detect steel part surface and sub-surface material defects.

•

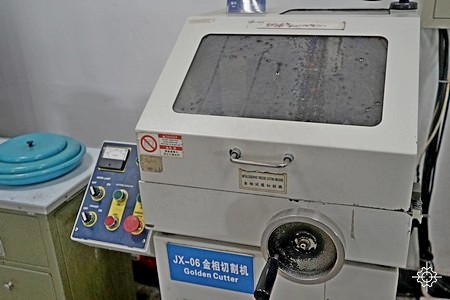

  Metallurgy sample cutting machine - to cut a section from metal workpiece to inspect the metallurgical structure.
•

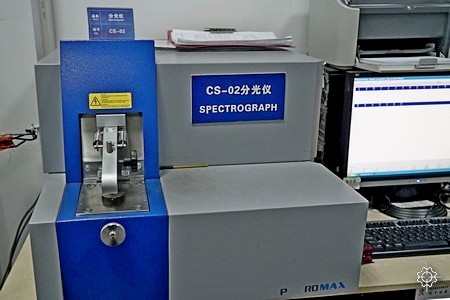

  Spectrograph.

•

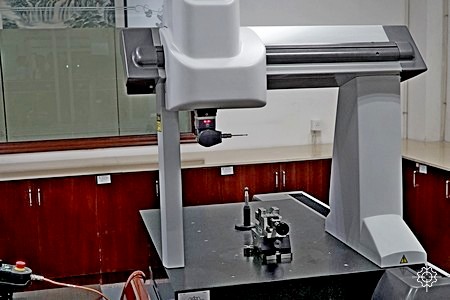

  3D measuring machine
•
  Projection dimension measurement equipment

Packaging and Shipping

•

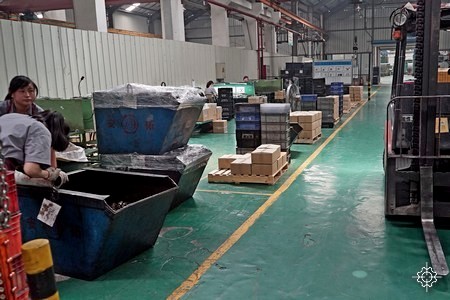

  Machining parts packaging area
•

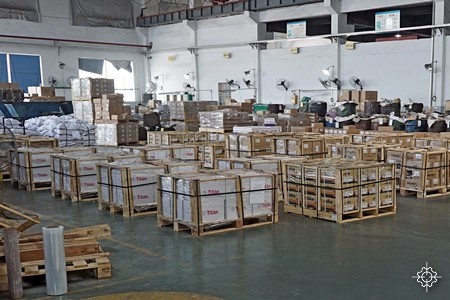

  Machining parts pelletized and ready for shipment
